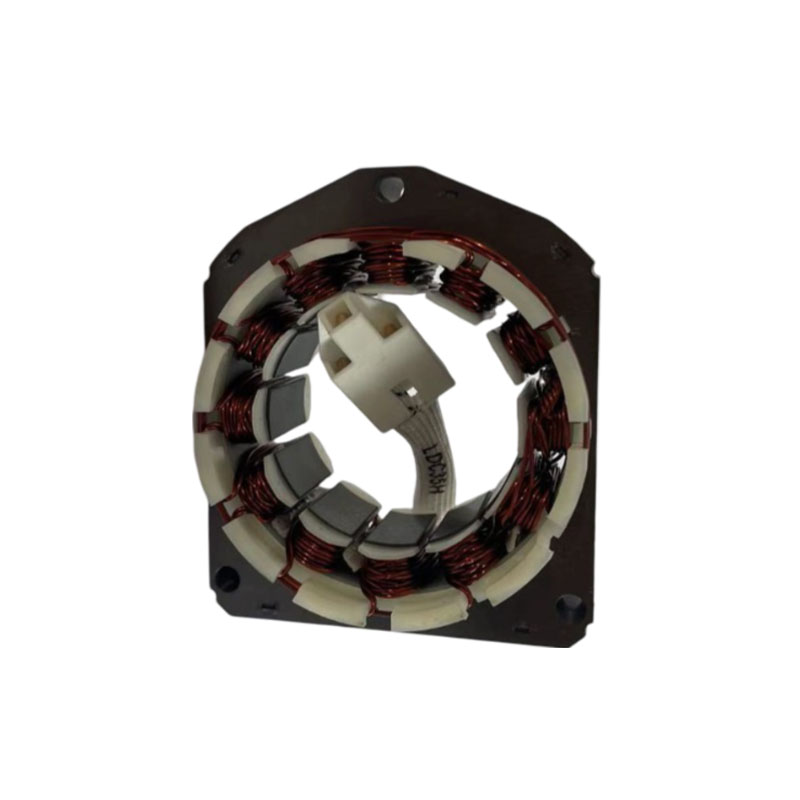

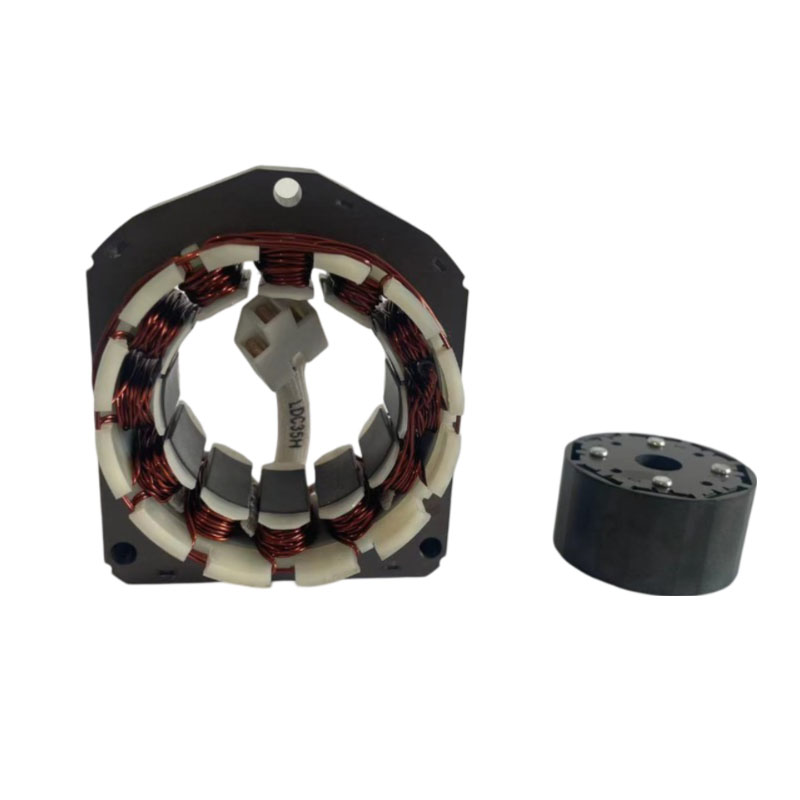

LDC35 Motor

Core height

25±0.5mm

Bolt hole distance

69.6*80mm

Winding parameters

A winding

Wire diameter Ø0.75+0.80mm (copper wire)

A winding turns

7

7

7

7

A winding weight

Resistance

0.1±7%Ω

B winding

Wire diameter Ø0.75+0.80mm (copper wire)

B winding turns

7

7

7

7

B winding weight

Resistance

0.1±7%Ω

C winding

Wire diameter Ø0.75+0.80mm (copper wire)

C winding turns

7

7

7

7

C winding weight

Resistance

0.1±7%Ω

Plug board direction and lead length

Right triangle, lead length 50±5mm

Casing marking

LDC35H

Core inner hole

Ø50.04—Ø50.09mm

Inner diameter inspection

Go/No-Go Gauge Inspection

Wire package requirements

Lead end height

Special inspection tool

Non-lead end height

Inner envelope size

Outer envelope size

Rotor outer diameter

Ø49±0.04mm

Rotor stack thickness

25±0.5mm

Rotor inner diameter

Ø11.961—Ø11.979mm

Channel direction

Counterbore diameter

Φ20.2±0.1mm

Countersunk hole depth

14.5±0.5mm

Aluminum ring height

Rotor marking

NDC25H

General requirements: no rust on the core, no damage to the slot insulation, no cracks on the enameled wire, and firm binding (appearance).

Rotation direction: from the lead end, counterclockwise rotation to the right.
